FL18COB3030
Soft White
3000–4000 K; configuration-specific performance. Residential, office, retail, hospitality, decorative and architectural lighting.
Download series PDFChip-on-Board LEDs
A 30 mm chip-on-board platform, in eleven products.
Polymatech CoB components, manufactured in India and available from Nisene in the United States.
The eleven-product range covers white, blue, hyper-red, dual-band blue-plus-red, dual-band blue-plus-near-infrared, dual-band blue-plus-green, UV-A and UV-C categories on 30 mm platforms. Electrical, optical and thermal characteristics vary by configuration.
Technical specifications shown on this page were supplied by Polymatech Product Development. Product specifications and availability are subject to change.
Common technical specifications
Common characteristics supplied by Polymatech Product Development for the nine configurations detailed below.
| Category | Optoelectronics LED CoB engines |
|---|---|
| Manufacturer | Polymatech |
| Maximum voltage | 27 V |
| Maximum current | 700 mA |
| Power consumption | 10 W–54 W |
| Temperature test | 100°C |
| Viewing angle | 120° |
| Size / dimensions | 30.00 × 30.00 × 1.00 mm |
| Light-emitting surface | 8.00 mm diameter |
| Configuration | Square |
| Packaging | Box |
| Lens type | Flat |
| Features | IP67 |
| Compliance | RoHS |
Eleven chip-on-board products
Product descriptions and applications below reflect the technical information supplied by Polymatech Product Development.
Product photographs are indicative representations of the respective CoB categories.

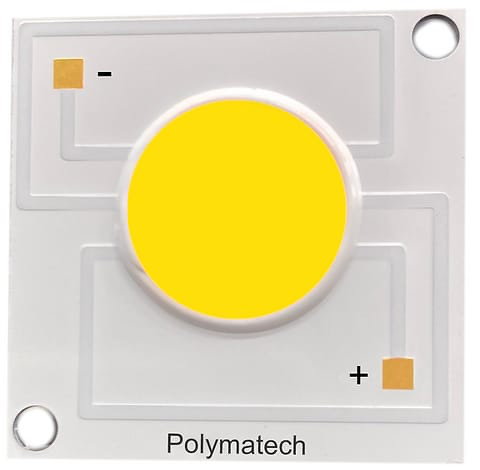

FL18COB3030
Always White
4000–7000 K; configuration-specific performance. General, architectural, commercial and industrial lighting, including indoor and outdoor luminaires.
Download series PDFFL18COB3030
Warm White
2700–3500 K; configuration-specific performance. Hospitality, residential, decorative, retail and architectural lighting.
Download series PDFFL18COB3030
Surgical White
White-light CoB intended for specialised illumination applications.
Download series PDF
FL18COB3030

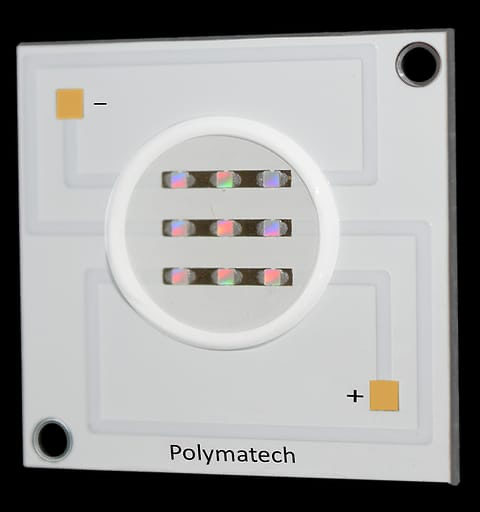

Blue 450 nm
General illumination, specialty lighting, horticulture and controlled-environment applications.
Download series PDF
FL18COB3030

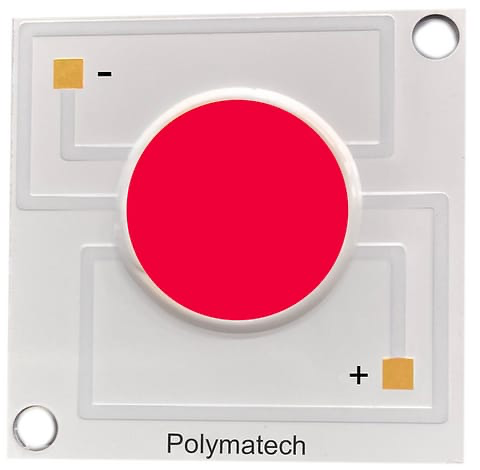

Horticulture Red 660 nm
Horticulture, greenhouse, vertical-farm, indoor-farm and controlled-environment lighting for plant growth and flowering.
Download series PDF
FL18COB3030

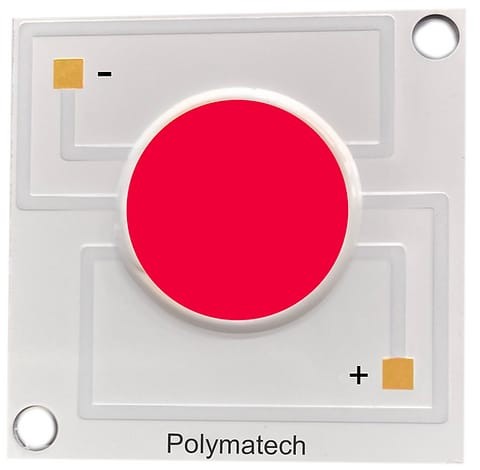

Blue + Red
Nominal 450 nm blue + 650 nm red dual-band engineering configuration.
Download datasheet
Polymatech CoB

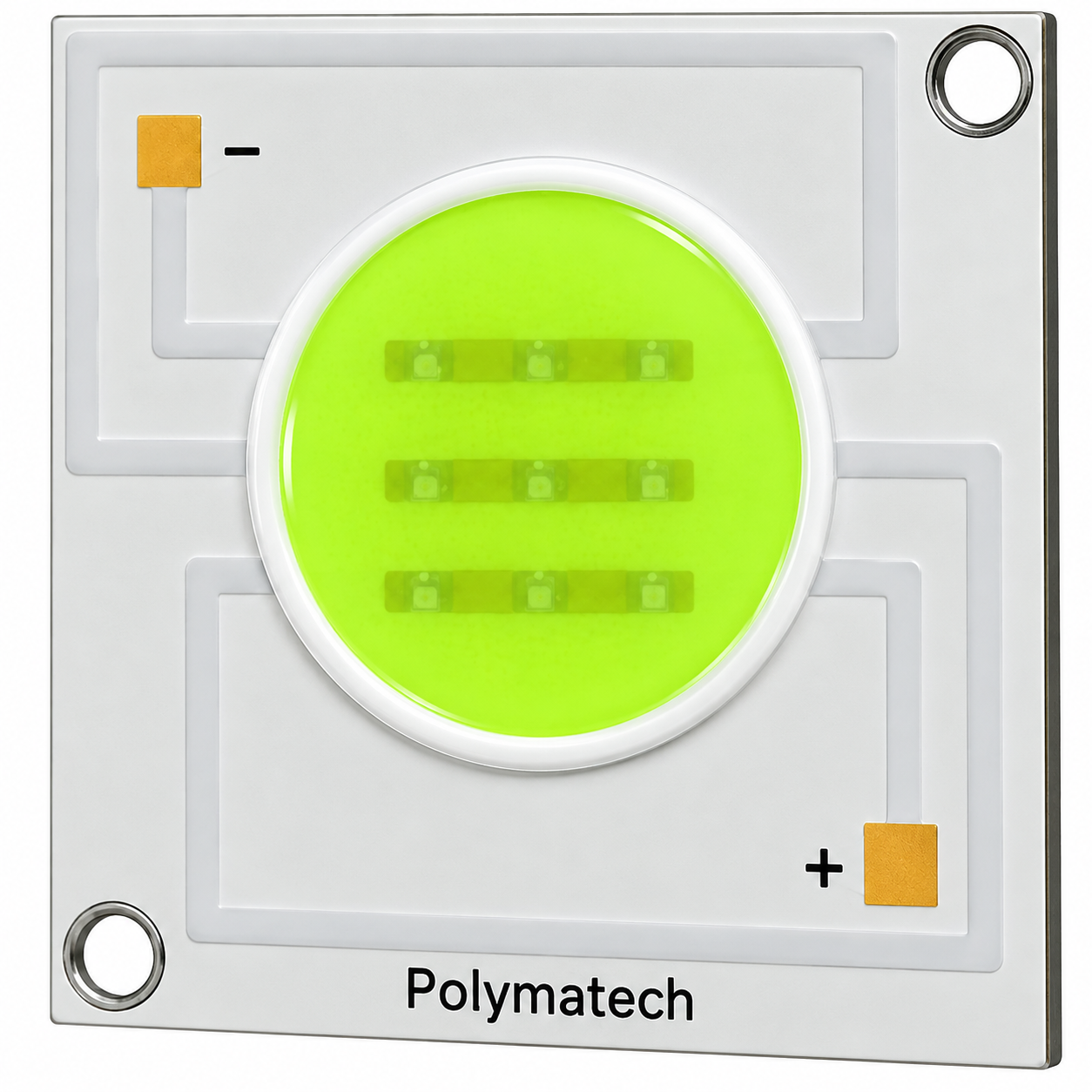

Blue + Near-Infrared
450 nm blue + 750 nm near-infrared. Horticulture, controlled-environment agriculture, indoor farming, vertical farming, greenhouse lighting and plant development.
Download datasheet
Polymatech CoB

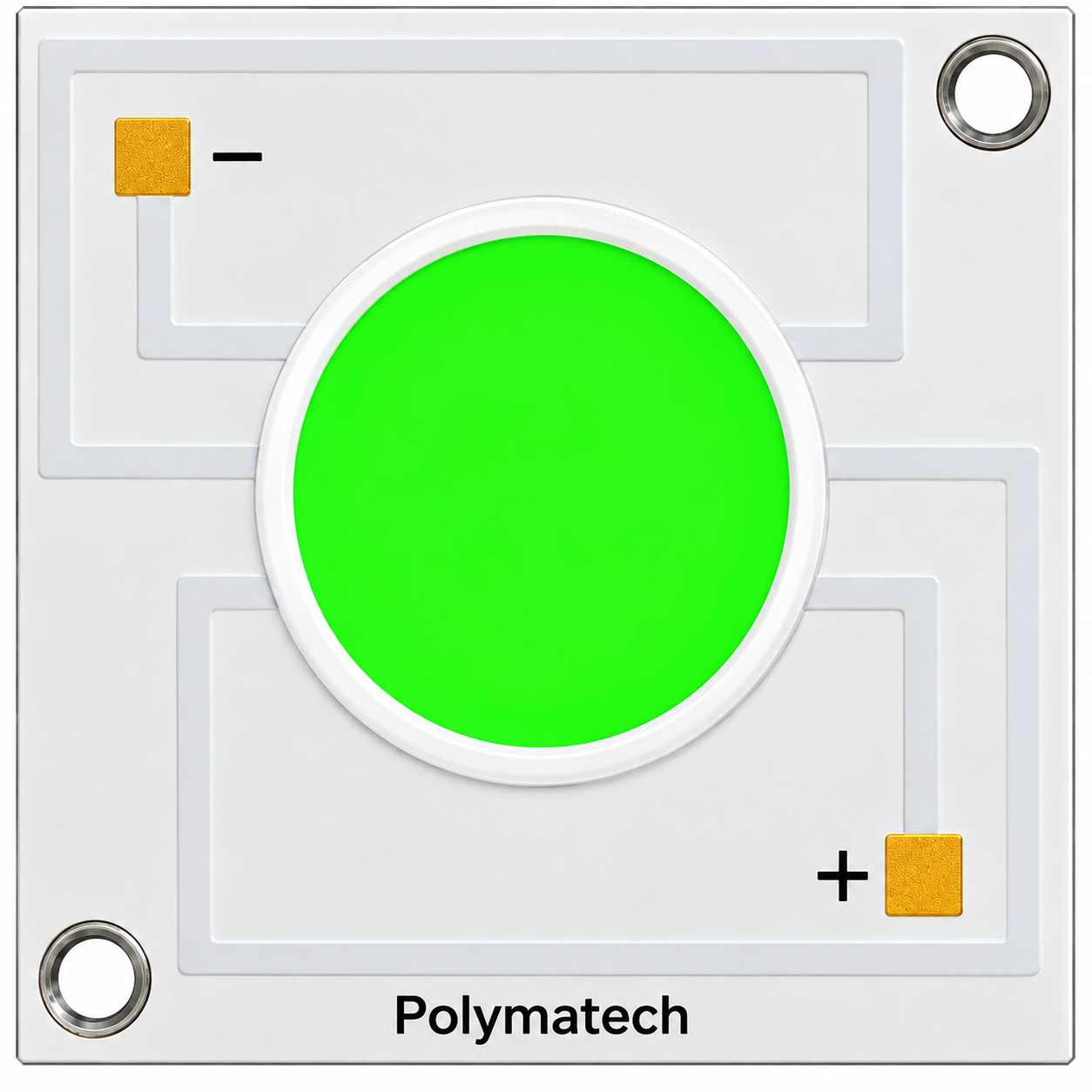

Blue + Green
450 nm blue + 550 nm green. Horticulture, controlled-environment agriculture, indoor farming, vertical farming, greenhouse lighting and plant development.
Download datasheetFL02COB3030
UV-A 385 nm
UV curing, fluorescence excitation, inspection, forensic and industrial applications.
Download series PDFFL09COB3030
UV-C 270 nm
Germicidal, surface-disinfection, air-treatment, water-treatment and sterilization-system applications.
Download series PDFProduct-specific specifications
Approved technical information supplied by Polymatech Product Development.
| Product | Wavelength / CCT | Optical efficacy | Applications |
|---|---|---|---|
| Always White | 4000–7000 K | Configuration-specific | General, architectural, commercial and industrial lighting; indoor/outdoor luminaires |
| Warm White | 2700–3500 K | Configuration-specific | Hospitality, residential, decorative, retail and architectural lighting |
| Soft White | 3000–4000 K | Configuration-specific | Residential, office, retail, hospitality, decorative and architectural lighting |
| Blue CoB Series | 450 nm | — | General illumination, specialty lighting, horticulture and controlled-environment applications |
| Horticulture Red CoB Series | 660 nm | — | Horticulture, greenhouse, vertical-farm, indoor-farm and controlled-environment lighting; plant growth and flowering |
| IR + Blue | 450 nm + 750 nm | — | Horticulture, controlled-environment agriculture, indoor farming, vertical farming, greenhouse lighting and plant development |
| Blue + Green | 450 nm + 550 nm | — | Horticulture, controlled-environment agriculture, indoor farming, vertical farming, greenhouse lighting and plant development |
| UV-A CoB Series | 385 nm | — | UV curing, fluorescence excitation, inspection, forensic and industrial applications |
| UV-C 270 nm CoB Series | 270 nm | — | Germicidal, surface-disinfection, air-treatment, water-treatment and sterilization-system applications |
Ultraviolet product safety
UV-A
Ultraviolet radiation can cause eye and skin injury. Do not look directly at an energised emitter. The integrator must provide shielding, interlocks, warning labelling and a completed system-level risk assessment appropriate to the finished product.
UV-C 270 nm
UV-C radiation can cause serious eye and skin injury. Exposure must be prevented by design. This platform is intended solely for integration by qualified equipment manufacturers, who are responsible for shielding, interlocks, warning labelling and a completed system-level risk assessment.
The listed applications identify intended integration categories. Finished-system dose, exposure control and efficacy must be established by the equipment manufacturer.
Series documents
United States website release, Rev270826.
Document
White CoB Series
General series information. PDF.
Download PDFDocument
Blue CoB Series
General series information. PDF.
Download PDFDocument
Horticulture Red CoB Series
General series information. PDF.
Download PDFDatasheet
IR + Blue CoB
450 nm + 750 nm. U.S. edition PDF.
Download PDFDatasheet
Blue + Green CoB
450 nm + 550 nm. Horticulture and controlled-environment lighting. U.S. edition PDF.
Download PDFDocument
UV-A CoB Series
General series information. PDF.
Download PDFDocument
UV-C 270 nm CoB Series
General series information. PDF.
Download PDFDiscuss a chip-on-board LED requirement
Tell us the required wavelength or colour temperature, optical output, electrical operating conditions, application, order quantity and thermal-design requirements.
